Directed by Valeria Gallegos Toriz
This stop-motion short was created for the Stop-motion 2 class offered at the Savannah College of Art and Design. The project was completed in the span of 3 months.

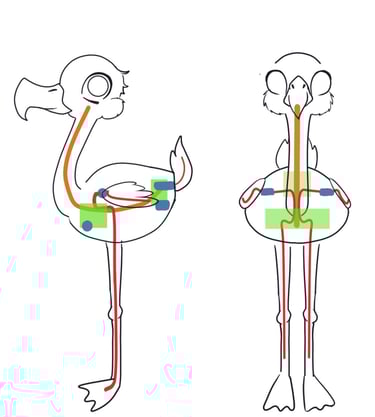

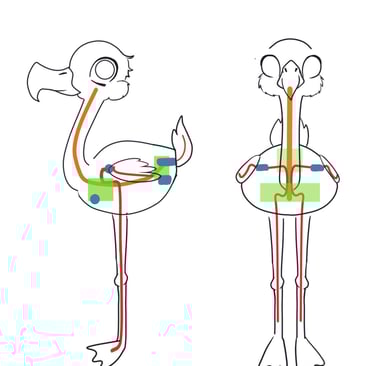

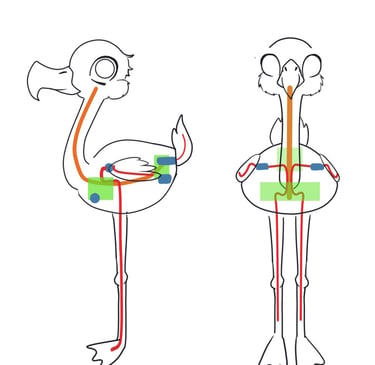

Puppet fabrication: Mingo

Set Fabrication

Water Animation

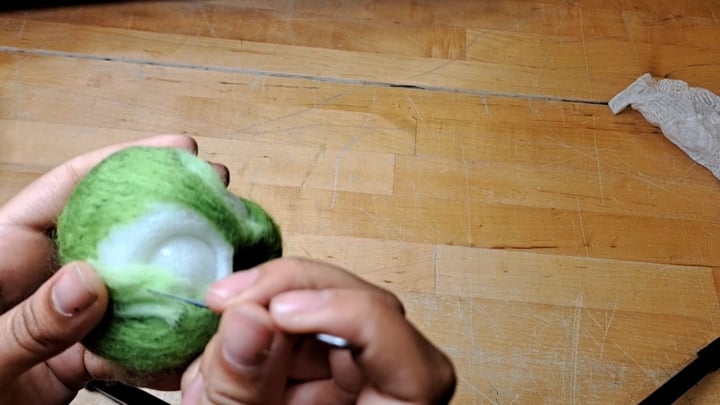

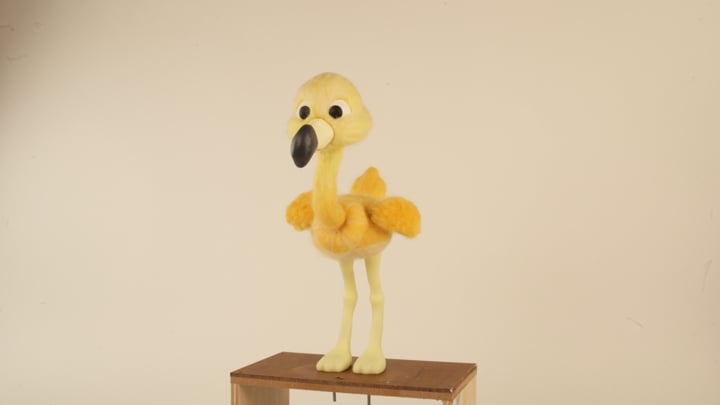

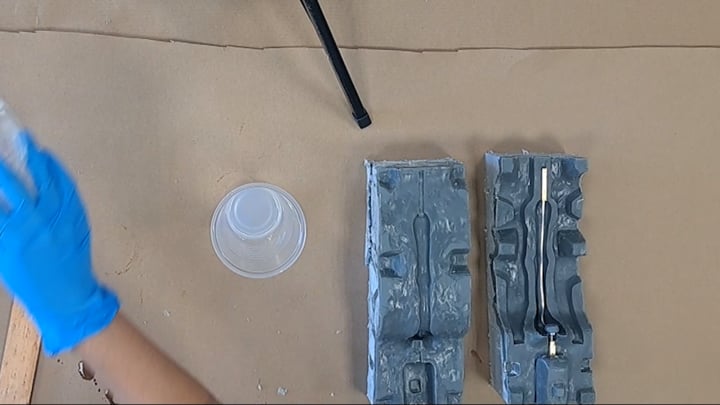

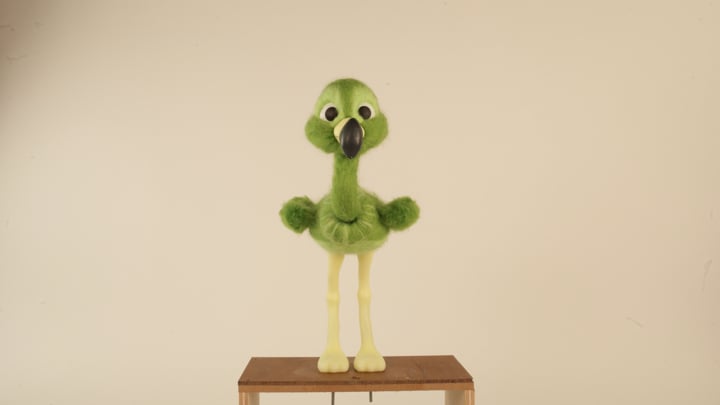

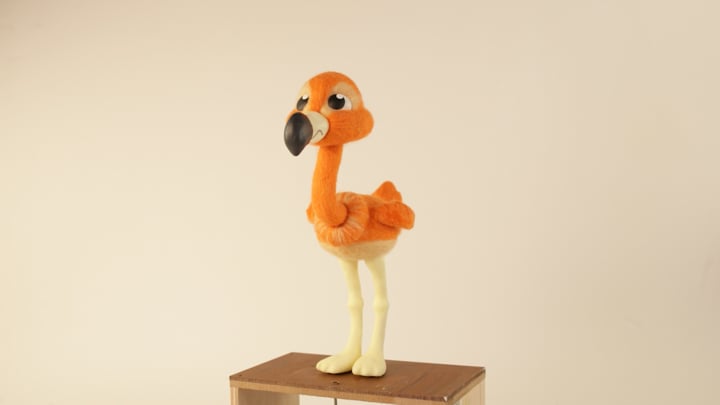

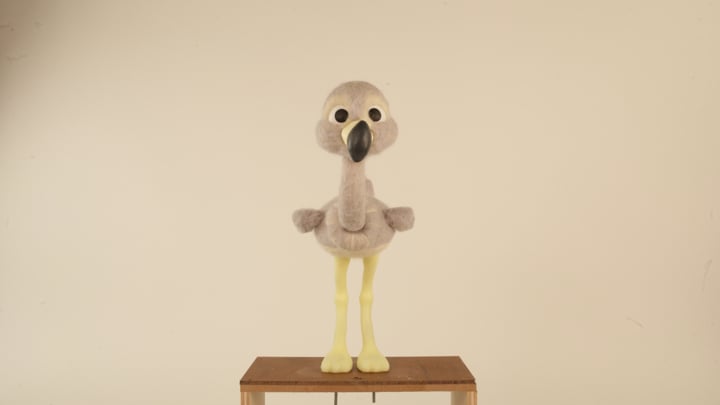

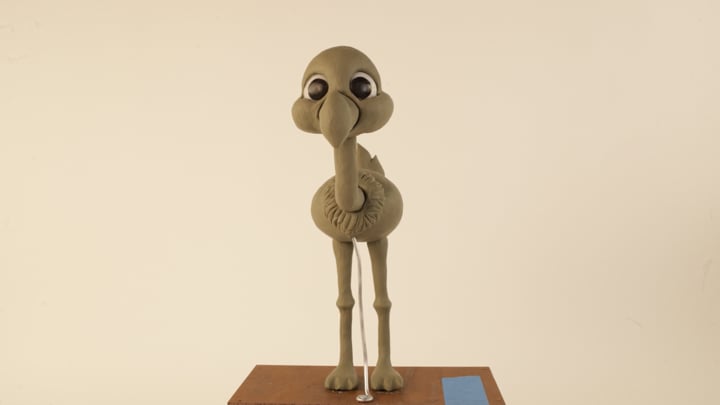

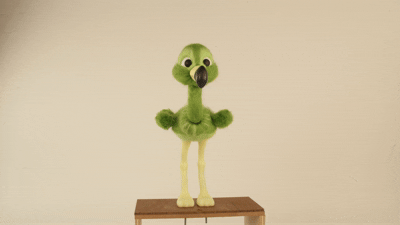

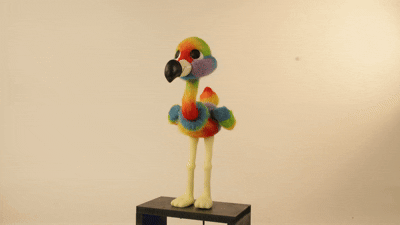

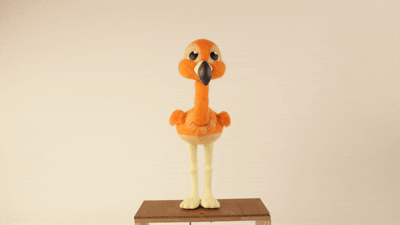

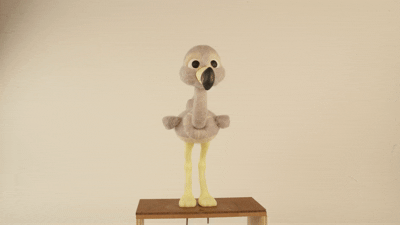

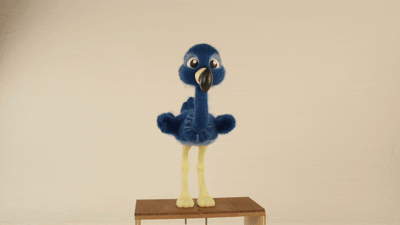

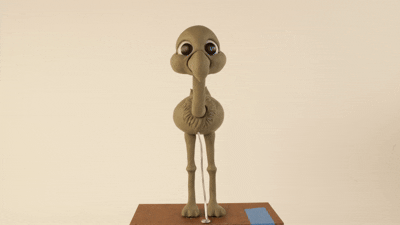

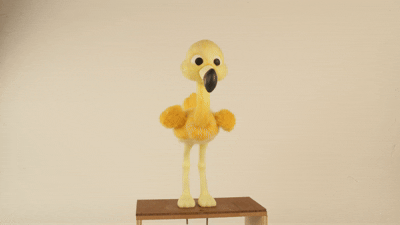

The puppet was cast in 3 different materials: plastic, silicone, and foam. Needle felting was used to give him a soft and friendly look

Lighting:

Key Light

Fill Light

Rim Light

Background Light

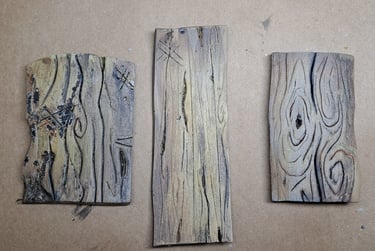

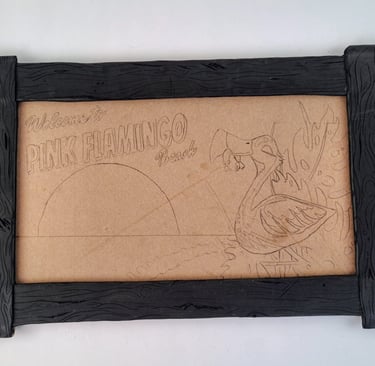

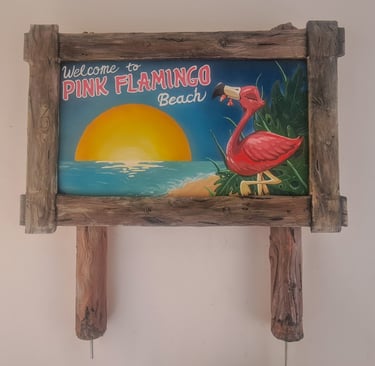

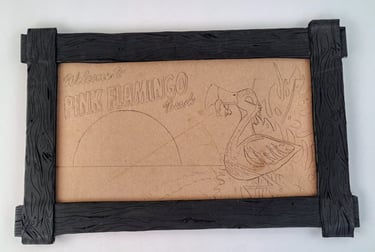

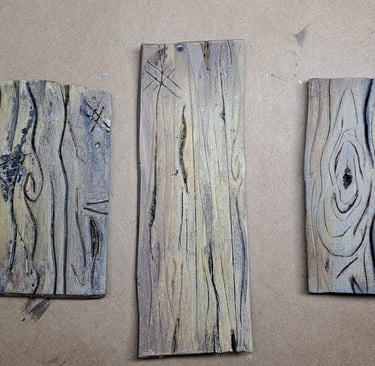

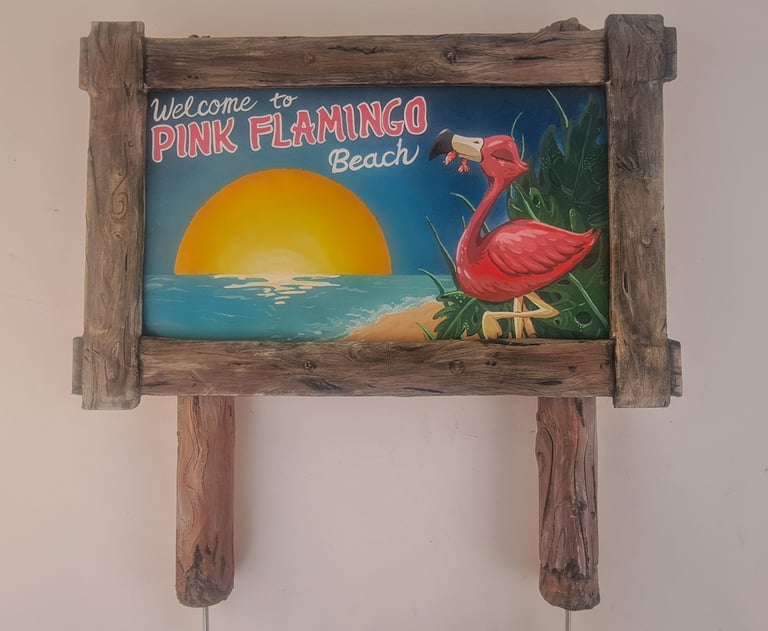

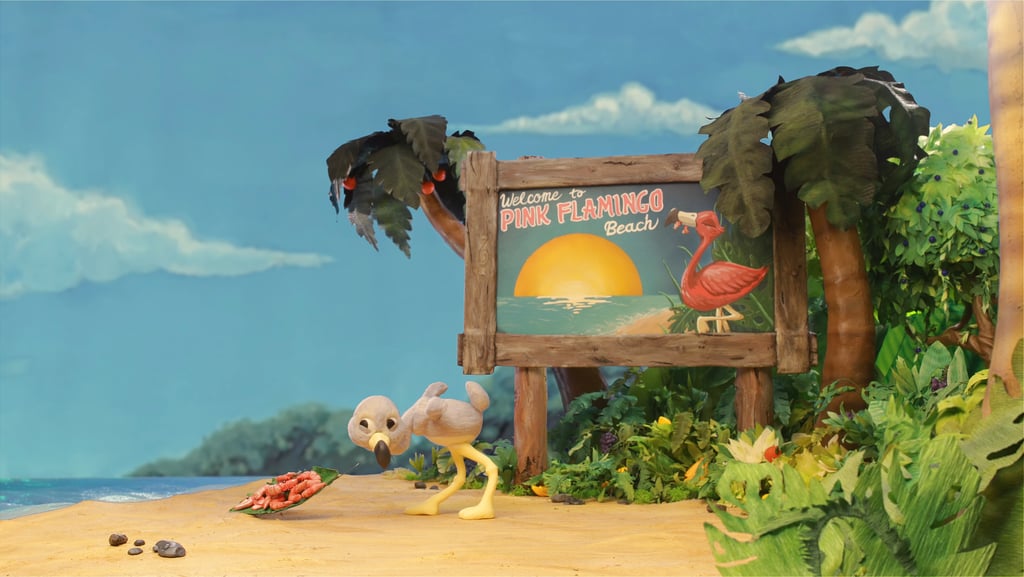

The big set built for the short film was the hero beach set. The most prominent part of the set was a big wooden flamingo sign. The typography, color palette, and composition were carefully considered to deliver narrative exposition and fit the friendly look of the short. The wooden sign was built using PVC pipes and MDF wood to achieve a lightweight but sturdy structure. These elements were then wrapped in EVA foam, which was scored with an exacto knife and dremeled to achieve a cartoony wooden texture.

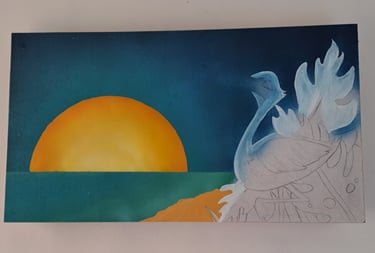

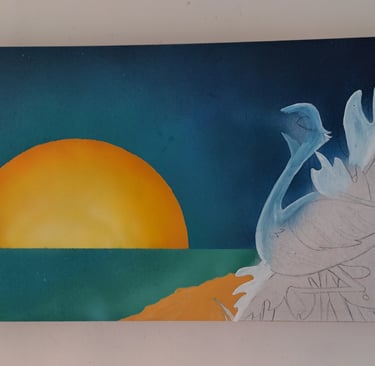

All elements of the sign, including the interior illustration where carefully hand-painted using a variety of techniques, airbrushing, and dry brushing. Finally the posts were designed with space for tiedown screws to go through so the asset could be firmly attached to the stage.

Concept art by Nna Fontes

Responbie for gn fabrication, puppet, water and some greeney

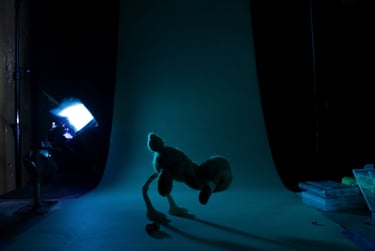

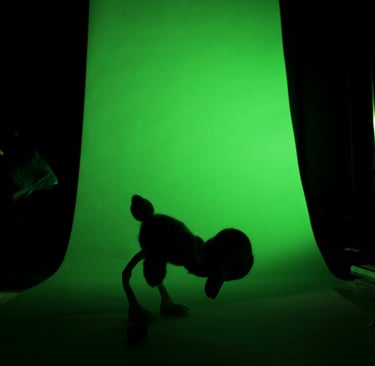

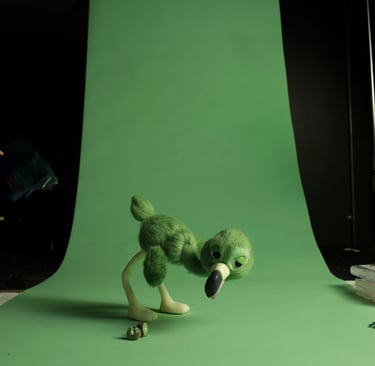

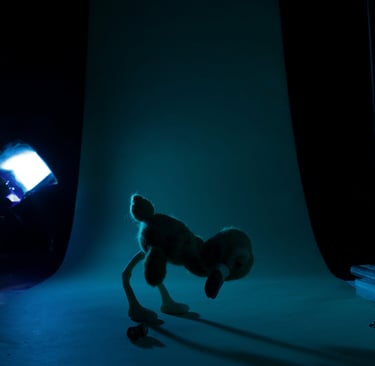

Lighting plays a big role in the narrative of the film. Going from a highkey naturalistic lighting in the beach, to a three point studio lighting set up in the void world. Colored gels were used to emphasize the color of the puppet.

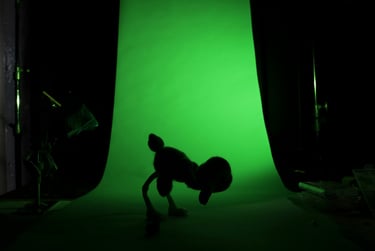

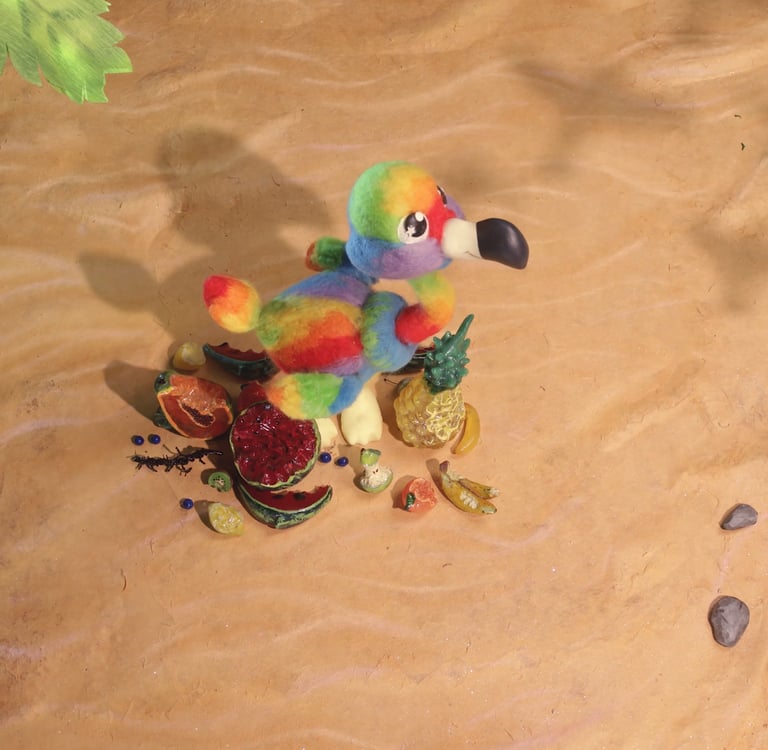

Animatable cookies were used to achieve the effect of moving shadows. Using a slider rig and indian brass rods each cut out could move independently while still traveling as a group. Two exposures were taken, one with the shadows and one without. This allowed for the desired shadows to be comped out.
